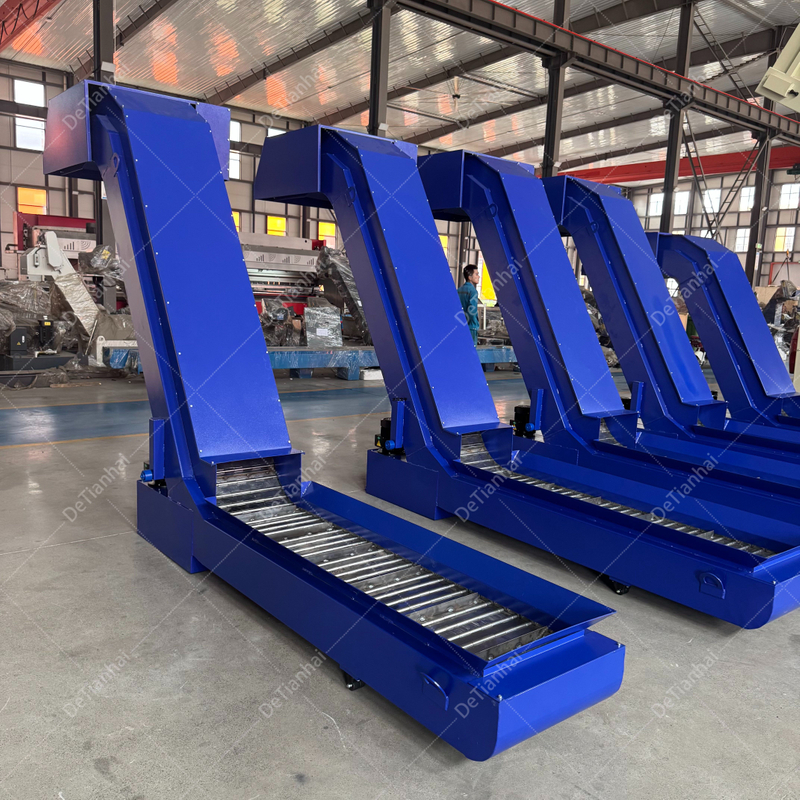

In‑floor Wet‑Type Chain Plate Chip Conveyor for Machine Tool Chip Removal

In‑floor Wet‑Type Chain Plate Chip Conveyor is pit‑embedded chip removal equipment. The main body is installed underground with top surface flush with workshop floor, saving valuable floor space. It handles wet metal chips mixed with coolant and cutting fluid, realizing solid‑liquid separation. Chips are conveyed to chip bin while coolant flows back for recycling. Ideal for gantry machines, large machining centers and centralized chip‑removal production lines.

Brand:
DeTianHai

Quantity:
Availability:





Inquire Add to Basket

In‑floor chip conveyor pit mounted chip remover wet type chain plate chip conveyor CNC machine chip removal centralized chip handling metal swarf conveyor

Product Description

Basic Info.

Model NO.

TCPB300

Material

Carbon Steel

Material Feature

Oil Resistant

Application

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition

New

Marketing Type

New Product 2023

Certification

ISO9001:2015

Warranty Period

1year

Voltage

110V/220V/380V

Name

Chain Plate Chip Conveyor

Brand

Detianhai

Chain Plate Material

Stainless Steel

Transport Package

Plywood Box

Trademark

DeTianHai

Origin

China

Packaging & Delivery

Package Size

150.00cm * 60.00cm * 180.00cm

Package Gross Weight

400.000kg

Product Description

Chip Conveyor for CNC Machine Scraper Chip Removal Machine Roller Chain Plate Chip Conveyor

01 Quality selection
Using high-grade stainless steel/carbon steel paint process, hard objects hit the paint film without damage Door surface smooth, no lines, orange peel phenomenon. Smooth edges, same color,Uniform paint film, full color
02  18mesh screen
Filter impurities such as fine iron filings to protect the service life of the machinery
03 Brand motor
Low noise and long service life

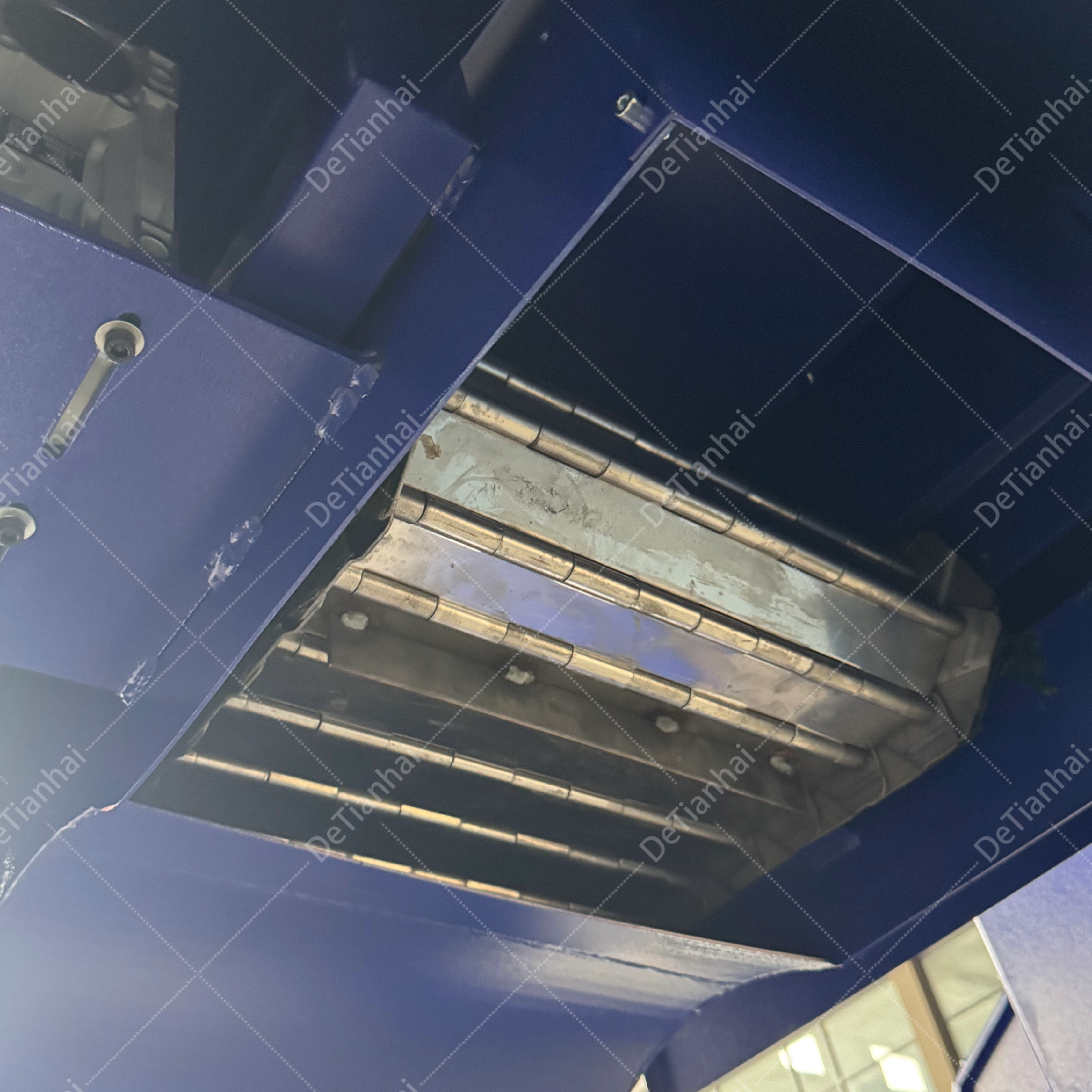

04  Stainless steel/cold plate cooking black chain plate
Convex design, increase friction, improve the loss
Transmission efficiency

Product name:Chain-plate chip removal machine Chain sheet: Cold plate boiled black/stainless steel
Shell material: Stainless steel/carbon steel paint Product specification:Complete specifications support customization
Product customization: Products can be customized according to your requirements contact customer servic
Product characteristics: Easy to install, stable structure, fast transportation, strong bearing capacity, etc
Scope of application: All kinds of metal cutting machine tools and cutting machine tools to prevent high-speed iron heat damage to the guide rail of the machine tool

Suitable for iron filings
Iron filings, metal filings, non-rolled filings, cast iron filings, copper filings, aluminum filings, etc
Chip Conveyor for CNC Machine Scraper Chip Removal Machine Roller Chain Plate Chip Conveyor

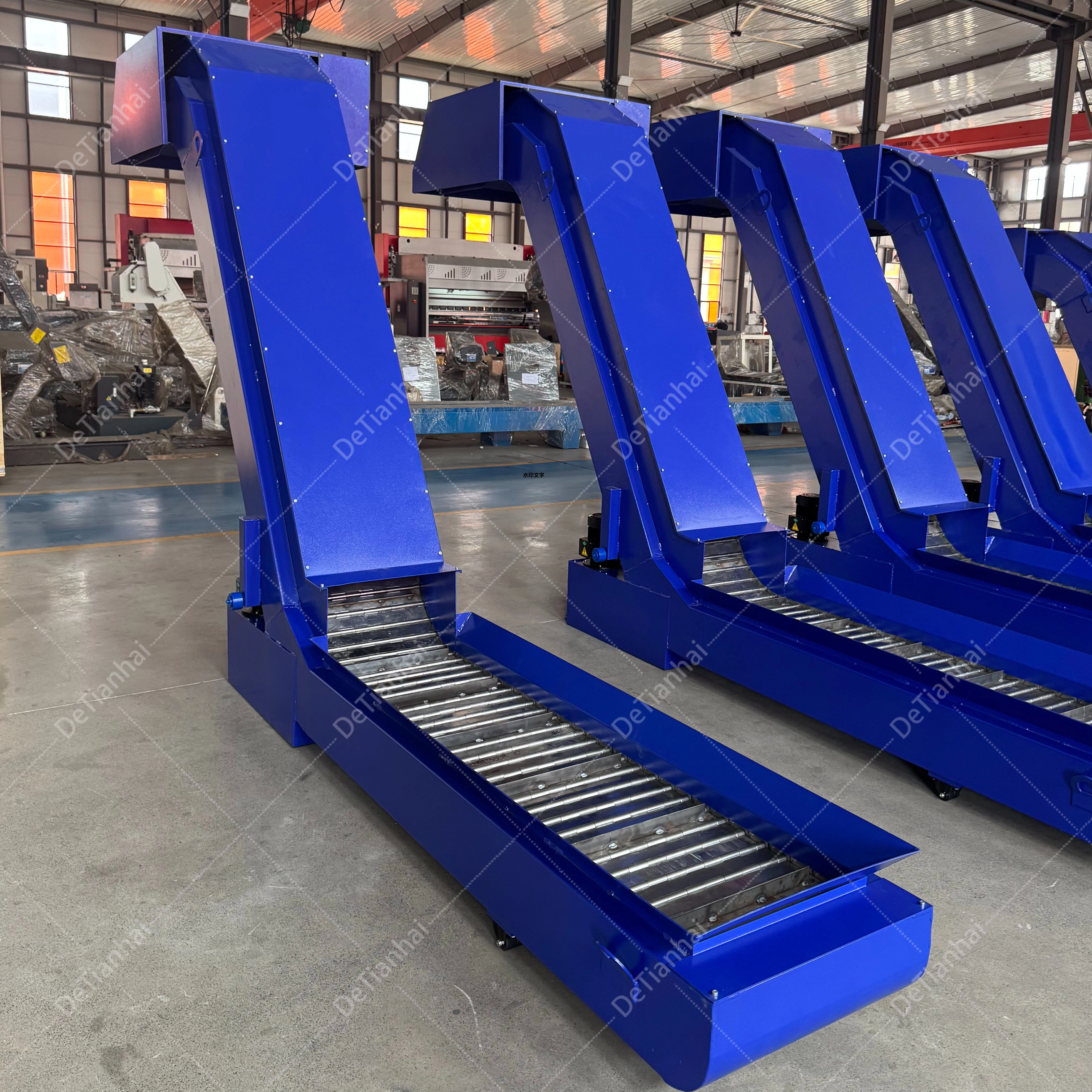

Chain-plate chip removal machine
The chain-plate chip removal machine has small size and high efficiency, and is mainly used for
Collect copper scrap, aluminum scrap, stainless steel scrap carbon block, nylon and other materials,
Chain plate can be customized according to customer requirements stainless steel and cold plate cooking black two

Scraper chip removal machine
The conveying speed of the scraper chip removal device has a wide selection range and high working efficiency.Effectively save the coolant and reduce the labor intensity of workers

Magnetic chip removal machine
Strong magnetic (strong magnetic)
Granular, powdery, iron filings adsorbed and separated, divided into magnetic plate and magnetic rod type two structures

Spiral chip removal machine
Can be divided into: axis, no axis
The shaft is suitable for long-distance transportation of chips produced by dry processing;Shaftless for conveying chips in wet processing with large coolant flow;Spiral chip removal machine occupies small space, easy installation, low failure rate, but only horizontal direction chip removal

Product name	Chain-plate chip removal machine
After-sales service	24 hours online service
Brand	DeTianHai

01 Manufacturers supply high cost performance
Many years of production experience, is a production, research and development, sales in one of the modern enterprise;Factory shipment, no intermediate price difference, cost-effective

Chip Conveyor for CNC Machine Scraper Chip Removal Machine Roller Chain Plate Chip Conveyor

02 Complete specifications support customization
Product specifications, variety, can be customized according to customer needs

Chip Conveyor for CNC Machine Scraper Chip Removal Machine Roller Chain Plate Chip Conveyor

03 Quality assurance after sale worry free
Pay attention to quality and strictly control quality

Chip Conveyor for CNC Machine Scraper Chip Removal Machine Roller Chain Plate Chip Conveyor

Dezhou Tianhai Precision Machinery Co., Ltd. is located in Qingyun Economic Development Zone, Shandong Province. The company is a comprehensive enterprise integrating the development, production and sales of machine tool accessories. The company was founded in 2009, we have more than ten years of production experience, the annual output of tens of thousands of sets of chip remover, machine tool accessories. We are determined to provide customers with the best service, the best quality products, the most abundant supply, we look forward to your arrival!
