Optimize Your Coolant Filtration: The Ultimate Guide to Flatbed Paper Belt Filters

Meta Description: Looking for efficient, low-maintenance coolant cleaning? Discover how a Flatbed Paper Belt Filter removes contaminants down to 20 microns, extends tool life, and reduces waste disposal costs.

Introduction

In the world of industrial machining, grinding, and parts washing, clean coolant is not a luxury—it is a necessity. Contaminated coolant leads to poor surface finishes, reduced tool life, and bacterial growth.

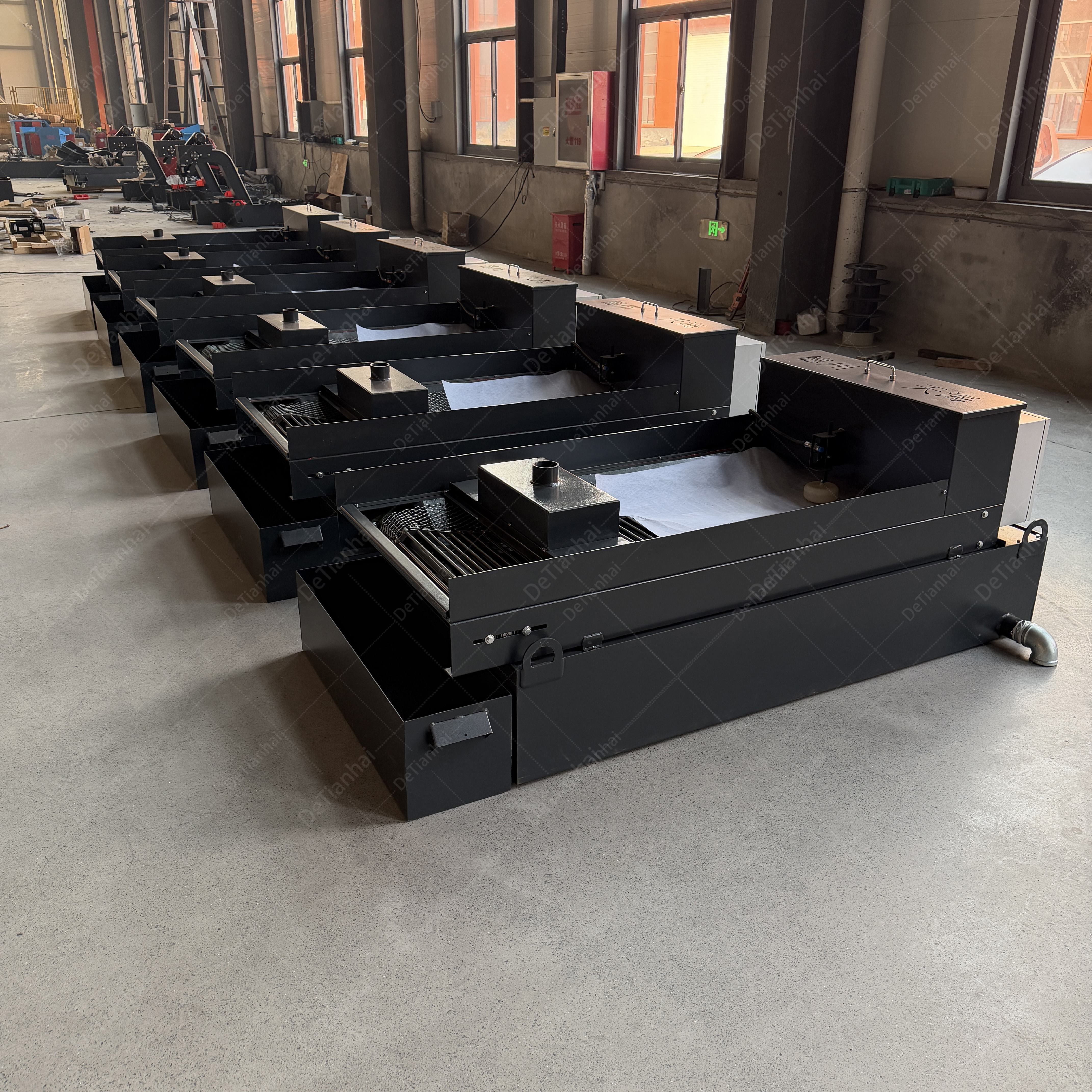

Enter the Flatbed Paper Belt Filter (also known as a Horizontal Paper Bed Filter). This workhorse of the filtration industry offers a simple, mechanical, and highly efficient solution for separating ferrous and non-ferrous particles from liquid coolants.

What is a Flatbed Paper Belt Filter?

A flatbed paper belt filter is an automatic gravity-based liquid/solid separation system. Unlike complex cyclone or centrifuge systems, it uses a disposable filter paper (media) to trap particles as coolant flows through it.

How Does It Work?

The process is elegantly simple:

1. Dirty Coolant Inlet: Contaminated liquid enters the dirty side of the filter bed.

2. Gravity Filtration: The liquid passes through a replaceable filter paper roll. Solids remain on top of the paper.

3. Clean Coolant Tank: The clean liquid falls into a reservoir below, ready to be pumped back to the machine.

4. Automatic indexing: As the paper pores clog, the liquid level rises. A float switch activates a gear motor, indexing (advancing) a fresh section of dry paper into place. The used paper, now a dry or semi-dry "cake" of sludge, drops into a discharge bin.

Key Technical Specifications

• Filtration Accuracy: 15–50 microns (depending on paper grade)

• Flow Rates: From 10 L/min to 1000+ L/min

• Media: Spun-bonded, non-woven polyester or rayon paper

• Applications: Grinding swarf (cast iron, steel, aluminum), honing chips, bearing manufacturing, and EDM.

Top 5 Benefits of Using a Flatbed Paper Filter

1. Superior Surface Finish
By removing fine abrasive particles (down to 20 microns), you prevent the recirculation of cutting chips that cause scratches and re-cutting. This extends grinding wheel and tool life by up to 30%.

2. Cost-Effective Operation
No moving parts in the filtration zone means less that can break. The only consumable is the filter paper. This is significantly cheaper than replacing clogged cartridge filters or paying for high-energy centrifuges.

3. Dry, Clean Swarf
The paper belt acts as a dewatering device. The chips/sludge discharged are often dry enough to pass the "paint filter" test for liquid waste, drastically reducing waste disposal costs and allowing for easier scrap metal recycling.

4. Extends Coolant Life
Removing tramp oil and anaerobic bacteria food sources (the solid fines) keeps the coolant fresher for months longer than traditional settling tanks.

5. 24/7 Automation
The level-sensing float switch automates the paper advance. Operators don't need to stop the machine to "change a filter."

Common Applications

• Grinding Operations: Surface grinders, centerless grinders, double-disc grinders.

• Honing & Super-finishing: Removing abrasive stones from oil.

• Parts Washers: Filtering alkaline cleaning solutions.

• Steel & Aluminum Rolling: Removing scale and fines.

Integration with Magnetic Separators (The "Combo" Unit)

For high-volume grinding of ferrous metals, a flatbed filter can be paired with a Magnetic Drum Pre-Separator.

• How it works: Dirty coolant hits a rotating magnet first. The magnet removes 70-80% of the heavy iron sludge.

• Why do it: This dramatically extends the life of your paper roll, reducing consumable costs by up to 60%.

Maintenance Tips

• Paper Selection: Use high porosity paper for grinding (water-based coolant) and tight weave paper for EDM/honing (oil-based coolant).

• Seal Inspection: Check the rubber side seals and end dams weekly. If they leak, dirty coolant bypasses the paper.

• Float Switch: Ensure the float mechanism moves freely; sticky switches lead to "over-indexing" (wasting paper).

Conclusion

If you run grinding machines or need to remove high volumes of solid fines from industrial liquids, the Flatbed Paper Belt Filter is the gold standard. It offers the best balance of initial cost, filtration efficiency, and low operating expense.

Is it the right fit for your shop? Evaluate your chip type (stringy vs. powdery) and flow rate. For powdery grinding sludge, nothing beats a paper bed.
