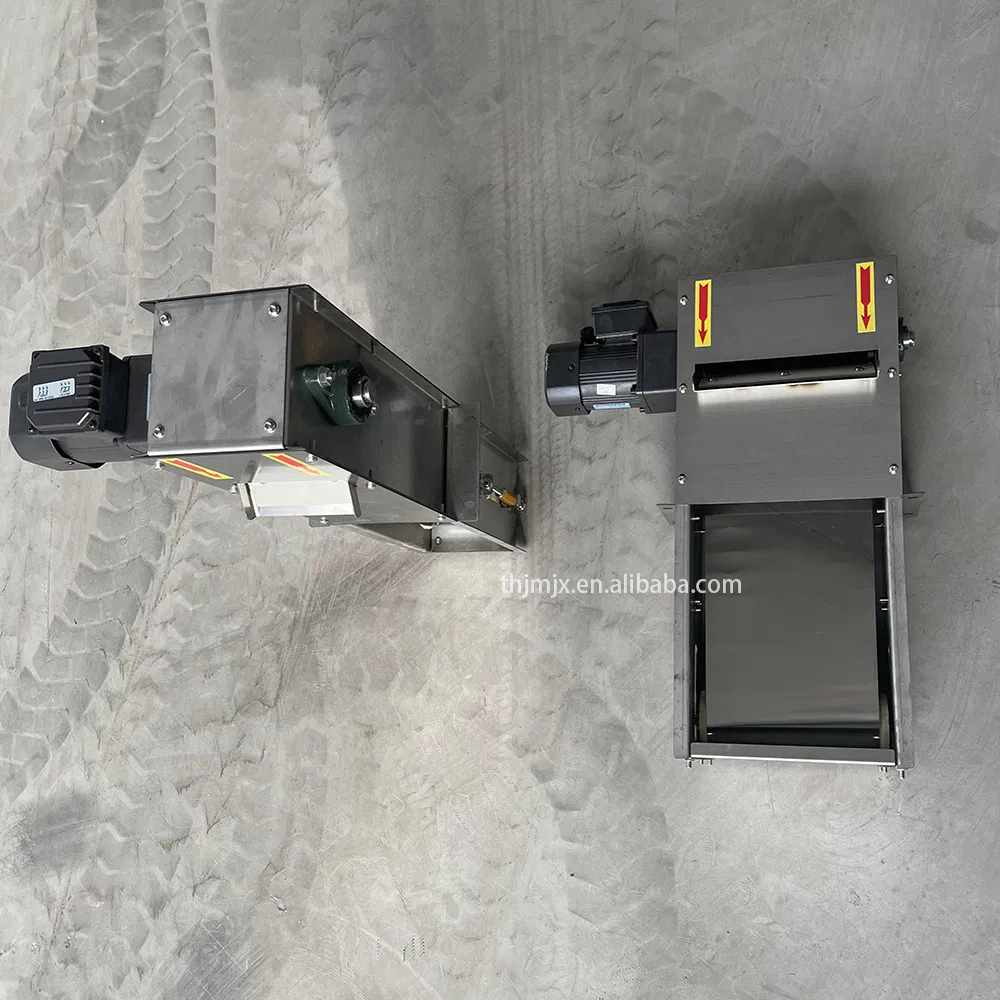

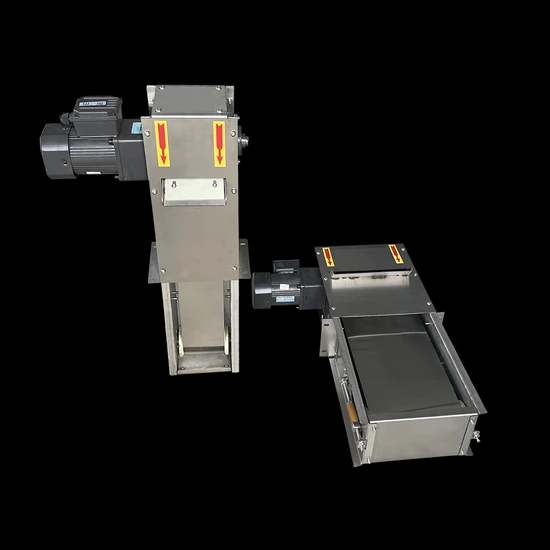

Customized CNC Machine Tool Cutting Fluid Oil Separation Oil-Water Separator

Customization:	Available
Certification:	ISO9001:2015
Application:	Industrial

Quantity:




Inquire Add to Basket

CNC Plastic Cable Chain

Product Description

Basic Info.

Weight (Kg)

35 Kg

Condition

New

Warranty

1 Year

Size

300mm*200mm*1000mm

After-Sales Service Provided

on-Line Support

Showroom Location

None

Material

Stainless Steel 304

Weight

35kg

Warranty of Core Components

1 Year

Brand

Detianhai

Core Components

Gearbox, Gear, Engine, Motor

Voltage

110V/220V/380V

Model

Th-58cr

Machinery Test Report

Provided

Transport Package

Plywood Box

Trademark

DeTianHai

Origin

Shandong, China

Product Description

This product uses the rotary movement of the oil resistance belt to continuously bring the oil slick out of the liquid level,
and by the scraper fixed on the shell. The oil is scraped into the tank to separate the oil and water and recover the oil.

01.Hard and wear-resistant
Running without vibration, low noise, beautiful appearance, long service life.
Customized CNC Machine Tool Cutting Fluid Oil Separation Oil-Water Separator

02.Careful selection
Stainless steel material, carefully selected materials, refuse to shoddy.

03.Quality assurance
Waterproof and dust-proof, good sealing, high temperature resistance, many styles.
Customized CNC Machine Tool Cutting Fluid Oil Separation Oil-Water Separator

04.Multiple collocation
Combination of magnetic separator and steel belt oil water separator, equipped with water tank.

This product is composed of motor, driving wheel, oil belt, driven wheel, oil scraping plate, shell, support frame and tightening structure.

Fault and troubleshooting method

Serial number	Fault phenomenon	Possible cause	solution
1	The oil strip does not turn	Motor damage	Replacement motor
2	The oil strip runs off	Tension device tightening force is different	Adjust the tightening screws
3	The oil strip runs off	The machine is not level	Adjust the machine to level

Model	TH200	TH250	TH300	TH350	TH400
Φ	200	250	300	350	400
Oil removalKg/h	6	8	10	12	15
Machine weightKg	6	7	8	9	10

Model	Oil removal capacity (L/h)	Bandwidth	Belt length	Motor distribution	power
TH-4CR	15	4"/100MM	1.5M	220V/380V50HZ	60W
TH-8CR	30	8"/200MM	1.2M	220V/380V50HZ	90W
TH-28CR	60	2*8"/400MM	1.2M	220V/380V50HZ	90W
TH-38CR	90	3*8"/600MM	1.2M	220V/380V50HZ	90W
TH-48CR	120	4*8"/800MM	1.2M	220V/380V50HZ	180W
TH-58CR	150	5*8"/1000MM	1.2M	220V/380V50HZ	180W

Please consult customer service for more models.

The company has 3 senior technical personnel,20 professional technical personnel, CNC shearing machine, CNC bending machine, argon arc welding, gas welding, CNC plasma cutting machine and other sheet metal equipment is complete.

Dezhou Tianhai Precision Machinery Co., Ltd.

The company was founded in 2009, we have more than ten years of production experience, the annual output of tens of thousands of sets of chip remover, machine tool accessories. We are determined to provide customers with the best service, the best quality products, the most abundant supply, we look forward to your arrival!
